Service Rigs / Equipment

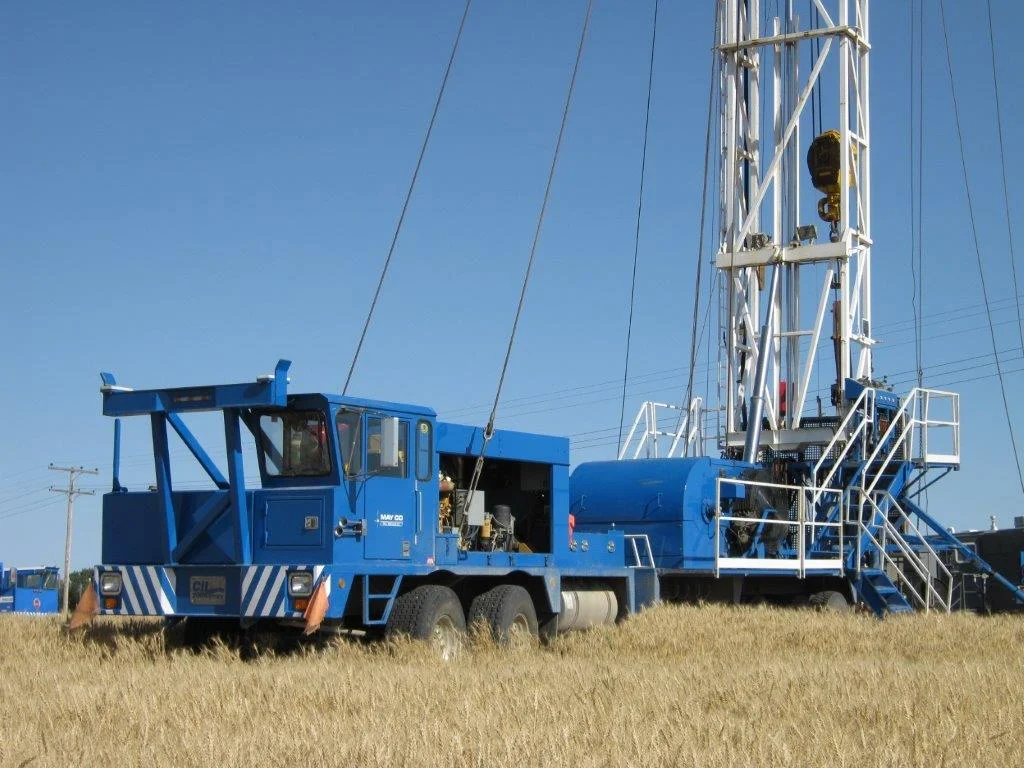

Service Rig: 2008 Care Industries Freestanding Double
*Mobile class II double tubing, triple rod, 32m mast
*42x10(main) Air disc auxiliary brake & crown saver
*Capacity 3200m (80,000dan)
*20 gallon accumulator c/w BOP ram saver
*430 HP Cat C13
*4700 OFS Allison Transmission
*McKissick 100 ton travelling block
*Sandline drum equipped with 4000m of ½ swaged sandline
*2 Hydraulic planetary winches (1 certified man rated)
*Rig is completely equipped with fall protection and rescue equipment including 2 DBI Sala self retracting lifelines positioned at top of mast ladder and fold out SRL bracket for working in rod basket, on tbg board & pump units
*Rig mast & carrier equipped with quick and easy rig up of winter prefabbing
*Ready for night work

Pump & Tank: 2011 SI built International mobile pump unit
*Cummins 15L power through Allison OFS 4700 6 speed automatic transmission
*E300 triplex pump c/w mission change pump
*2” x 21mpa Demco 7 valve pump manifold c/w pop valve and mud gauge
*30 m skid mounted rig tank c/w circulating trough, degasser, auto tank gauge & hopper type bottom with trough for non entry cleaning
*110m of 2” line pipe c/w drip trays and safety cables
*Circulating system rigged for purging resulting in zero ground contamination

BOP Truck: IH
*C/W BOP test stump for 21mpa double gate BOP and dual outlet work spool
*Swing out tong arm to accommodate Foster lifting cylinder
*Truck is tooled out to carry all well servicing equipment

- 60.3mm, 73mm, & 88.9mm tbg handling equipment. (Includes narrow slips, TIW valve & stripper packoff)
- 15mm through 25mm rod handling equipment (Regan BOP & rod wipers)
- BJ rod tongs
- Trico rod overshots to catch from 15mm to 25mm rods and couplings
- Wellhead flanges – National, small national, crown, crown cd, rector, 400 series
- Swabbing equipment and master valves

Mobile Doghouse: 2008 36' Norberts Doghouse
*(5) 4 head monitors & auto bump test station c/w computer generated printout
*Full size desk and knowledge box
*Laptop and printer (Loaded with all applicable rules and regulations)
*Microwave & coffee pot
*Incinolet toilet
*Kubota 30 kW generator
*Air conditioner

TrailTech Matting trailer:
*3 6x15 steel reinforced mats for back of rig and stabbing tbg
*1 set of retractable aluminum stairs for rig floor

Crew Truck
*3500 dual wheeled
*Diesel/solvent slip tanks
*side mounted pipe racks (generally used for BHPs)
*30 lb. External mounted fire extinguisher

Rig Manager Truck
*2500 HD 4x4 Truck
*Pipe racks
*30 lb.External mounted fire extinguisher

All Diesel engines equipped with positive air shut off
All equipment c/w electrical grounding cables

Service Rig: 2006 Exact Canada Freestanding Double
*Mobile class II double tubing, triple rod, 32m mast
*42x10 (main) c/w Air disc auxiliary brake & Crown saver
*Capacity 3200m (80,000dan)
*20 gallon accumulator c/w BOP ram saver
*430 HP 60 Series Detroit Diesel
*Allison OFS 4700 Transmission
*Unity Rig 100 ton travelling block
*Sandline drum equipped with 4000m of ½ swadged sandline
*2 BG8 Hydraulic Planetary winches (1 certified man rated)
*Rig is completely equipped with fall protection & rescue equipment including 2 DBI sala self retracting lifelines positioned at top of mast ladder & fold out SRL bracket for working in rod basket, on tbg board & pump units
*Rig mast & carrier equipped with quick & easy rig up of winter prefabbing
*Ready for night work

Pump & Tank:
*Trailer mounted 4x6 Gaso triplex pump
*John Deere 6.8L turbo diesel engine
*Fuller 5 speed transmission
*2” x 21mpa demco 7 valve pump manifold c/w pop valve and mud gauge
*Trailer mounted 30m3 rig tank c/w circulating trough, degasser & electronic auto tank gauge
*110m of 2” line pipe c/w drip trays and safety cables
*Circulating system rigged for purging resulting in zero ground contamination

BOP / Picker truck: 2002 Freightliner
*HIAB 088 BS Crane *C/W BOP test stump for 35mpa Sentinel II double gate BOP c/w dual outlet work spool
*Tong rack to accommodate Oil Country 5893closed mouth tbg tong c/w air backup & lifting cylinder
*Truck is tooled out to carry all well servicing equipment

- 60.3mm, 73mm & 88.9mm tbg handling equipment. (Includes narrow slips, TIW valve & stripper packoff)
- 15mm through 25mm rod handling equipment (Regan BOP & rod wiper)
- BJ rod tongs
- O'Bannon rod overshots to catch from 15mm to 25mm rods and couplings
- Wellhead flanges – National, small national, crown, crown cd, rector, 400 series
- Swabbing equipment and master valves

Mobile Doghouse: 2011 36' Norberts Doghouse
*(5) 4 head monitors & auto bump test station c/w computer generated printout
*Full size desk and knowledge box
*Laptop and printer (Loaded with all applicable rules and regulations)
*Microwave & coffee pot
*Incinolet toilet
*Kubota 30 kW generator
*Air conditioner

TrailTech Matting trailer:
*3 6x15 steel reinforced mats for back of rig and stabbing tbg
*1 set of retractable aluminum stairs for rig floor

Crew Truck
*3500 dual wheeled
*Diesel/solvent slip tanks
*Pipe racks
*30 lb. External mounted fire extinguisher

Rig Manager Truck
*2500 HD 4x4 Truck
*30 lb.External mounted fire extinguisher

All Diesel engines equipped with positive air shut off
All equipment c/w electrical grounding cables

Service Rig: 2005 IronTech SR 242 Freestanding Single
*Mobile class II single tubing double rod, 22m stiff mast                                                            *42x10 (main) belt driven drawworks c/w air disc auxiliary brake & crown saver
*Capacity 2800m (68,000dan)
*20 gallon accumulator c/w BOP ram saver
*Hydraulic free standing outriggers
*430 HP 60 Series Detroit Diesel
*Allison HT 750 transmission
*Unity Rig 75 ton travelling split block
*Sandline drum equipped with 4000m of ½ swaged sandline
*Hydraulic extending BOP stump test flange to accommodate Sentinel II 35mpa double gate BOP c/w dual outlet work spool
*Swing out tong arm to accommodate Carter 5893 tubing tong c/w air backup (raising ram             mounted in mast)
*2 Hydraulic planetary winches
*Rig is completely equipped with fall protection & rescue equipment including 2 DBI sala self  retracting lifelines positioned at top of mast ladder & on fold out SRL bracket for working in rod basket, on tubing board & pump units
*Rig mast & carrier equipped with quick & easy rig up of winter prefabbing
*Ready for night work

Pump & Tank: 2015 CBI Peterbilt model 365
*Cummins QSL-11 Power / Allison OFS 4500 auto transmission
*SJ 300 5x5 pump c/w mission charge pump & operators cab
*2” x 35mpa welded 7 valve demco manifold c/w pop valve and mud gauge
*30 m3 skid rig tank c/w circulating trough, degasser, auto tank gauge and hopper type bottom with trough for non entry cleaning
*110m of 2” line pipe c/w drip trays & safety cables
*Circulating system rigged for purging resulting in zero ground contamination

BOP / Picker Truck: 2006 IH 7500
*DT 570 through Allison auto RDS transmission
*Tandem axle dual wheel
*Hiab 2010 200 C4 Crane c/w wireless remote controller
*C/W BOP test stump for 21mpa Sentinel II double gate BOP c/w  dual outlet work spool
*Tong rack to accommodate Oil Country 5893closed mouth tbg tong c/w air backup & lifting cylinder
*Truck is tooled out to carry all well servicing equipment

- 60.3mm, 73mm & 88.9mm tbg handling equipment. (Includes narrow slips, TIW valve & stripper packoff)
- 15mm through 25mm rod handling equipment (Regan BOP & rod wiper)
- BJ rod tongs
- O'Bannon rod overshots to catch from 15mm to 25mm rods and couplings
- Wellhead flanges – National, small national, crown, crown cd, rector, 400 series
- Swabbing equipment and master valves

Mobile Doghouse: 2015 36' Norberts
*(2) 4 head monitors & auto bump test station c/w computer generated printout
*Laptop and printer (Loaded with all applicable rules and regulations)
*Full size desk and knowledge box
*Microwave & coffee pot
*Incinolet toilet
*Air conditioner
*Kubota 30kw generator

TrailTech Matting trailer:
*3 6x15 steel reinforced mats for back of rig and stabbing tbg
*1 set of retractable aluminum stairs for rig floor

Crew Truck
*3500 dual wheeled
*Diesel/solvent slip tanks
*Pipe racks
*30 lb. External mounted fire extinguisher

Rig Manager Truck
*2500 HD 4x4 Truck
*30 lb.External mounted fire extinguisher

All Diesel engines equipped with positive air shut off
All equipment c/w electrical grounding cables

Service Rig: 2006 Exact Canada C#350 Freestanding Single
*Mobile class II single tubing double rod 22m stiff mast
*38x10 main drum with air disc auxiliary brake & crown saver
*Capacity 2800m (68,000dan)
*20 gallon accumulator c/w BOP ram saver
*430 HP 60 Series Detroit Diesel
*4700 OFS Allison Transmission
*Unity Rig 75 ton travelling split block
*Sandline drum equipped with 4000m of ½ swadged sandline
*2 BG8 hydraulic planetary winches (1 certified man rated)
*Rig is completely equipped with fall protection and rescue equipment including 2 DBI Sala self retracting lifelines positioned at top of mast ladder and on fold out SRL bracket for working in rod basket, tbg board and pump units
*Rig mast and carrier equipped with quick and easy rig up of winter prefabbing
*Ready for night work

Pump & Tank: 2015 CBI Peterbuilt model 365
*Cat C13 Power/Allison 4500 OFS automatic transmission
*SJ 300 5x5 pump c/w bowie charge pump
*2” x 21mpa demco 7 valve pump manifold c/w pop valve and mud gauge
*30 m3 skid rig tank c/w circulating trough, degasser, electronic auto tank gauge and hopper type bottom with trough for non entry cleaning
*110m of 2” line pipe c/w drip trays & safety cables
*Circulating system rigged for purging resulting in zero ground contamination

BOP / Picker Truck: 2006 IH 7500
*DT 570 through Allison auto RDS transmission
*Tandem axle dual wheel
*Hiab 175-4 crane c/w wireless contrloller
*BOP  test stump for 35mpa Unity Rig double gate BOP c/w dual outlet work spool
*Tong rack to accommodate Oil Country 5893 tbg tong c/w air backup & lifting cylinder
*Truck is tooled out to carry all well servicing equipment

- 60.3mm, 73mm & 88.9mm tbg handling equipment. (Includes narrow slips, TIW valve & stripper packoff)
- 15mm through 25mm rod handling equipment (Regan BOP & rod wiper)
- Carter Rod Tongs,Wellhead flanges (National, small national, crown, crown CD, rector & 400 series)
- Swabbing equipment and master valves,Trico rod overshots to catch from 15mm – 25mm rods and couplings

Mobile Doghouse: 2015 36' Norberts
*(5) 4 head monitors & auto bump test station c/w computer generated printout
*Full size desk and knowledge box
*Laptop and printer (Loaded with all applicable rules and regulations)
*Microwave & coffee pot
*Incinolet toilet
*Air conditioner
*30kw Kubota generator

TrailTech Matting trailer:
*3 6x15 steel reinforced mats for back of rig and stabbing tbg
*1 set of retractable aluminum stairs for rig floor

Crew Truck
*3500 dual wheeled
*Diesel/solvent slip tanks
*Pipe racks
*30 lb. External mounted fire extinguisher

Rig Manager Truck
*2500 HD 4x4 Truck
*30 lb.External mounted fire extinguisher

All Diesel engines equipped with positive air shut off
All equipment c/w electrical grounding cables

Service Rig: (remanufactured in 2008) Mainland M 400 Freestanding Double
*Mobile class II double tubing, triple rod 32m mast
*42x10 (main) Air disc auxiliary brake & crownsaver
*Capacity 3200m Maximum static hook load – 200,000 lbs
*22 gallon accumulator c/w BOP ram saver
*430 HP 60 Series Detroit Diesel
*Allison 5860 6-speed transmission
*Unity Rig 100 ton block
*Sandline drum equipped with 4000m of ½ swadged sandline
*2 BG8 hydraulic planetary winches (1 certified man rated)
*Rig is completely equipped with fall protection and rescue equipment including 2 DBI Sala self retracting lifelines positioned at top of mast ladder and on fold out SRL bracket for working in rod basket, tbg board and pump units
*Rig mast and carrier equipped with quick and easy rig up of winter prefabbing
*Ready for night work

Pump & Tank: 2008 Sterling LT 9500
*Cat C13 Power/Allison OFS automatic transmission
*SJ 300 5x5 pump c/w mission charge pump
*2” x 35mpa welded 7 valve Demco manifold c/w pop valve and mud gauge
*30 m3 skid rig tank c/w circulating trough, degasser, auto tank gauge and hopper type bottom with trough for non entry cleaning
*110m of 2” line pipe c/w drip trays & safety cables
*Circulating system rigged for purging resulting in zero ground contamination

BOP / Picker Truck: 2006 IH 7500
*DT 570 through Allison 4500RDS auto transmission
*Tandem axle dual wheel
*Hiab 200 C4 Crane c/w wireless remote controller
*C/W BOP test stump for 35mpa Unity Rig double gate BOP c/w  dual outlet work spool
*Tong rack to accommodate Oil Country 5893closed mouth tbg tong c/w air backup & lifting cylinder
*Truck is tooled out to carry all well servicing equipment

- 60.3mm, 73mm & 88.9mm tbg handling equipment. (Includes narrow slips, TIW valve & stripper packoff)
- 15mm through 25mm rod handling equipment (Regan BOP & rod wiper)
- BJ rod tongs
- O'Bannon rod overshots to catch from 15mm to  25mm rods and couplings
- Wellhead flanges – National, small national, crown, crown cd, rector, 400 series
- Swabbing equipment and master valves

Mobile Doghouse:2009 36' Norberts Doghouse
*(5) 4 head monitors & auto bump test station c/w computer generated printout
*Full size desk and knowledge box
*Laptop and printer (Loaded with all applicable rules and regulations)
*Microwave & coffee pot
*Incinolet toilet
*Kubota 30 kW generator
*Air conditioner

TrailTech Matting trailer:
*3 6x15 steel reinforced mats for back of rig and stabbing tbg
*1 set of retractable aluminum stairs for rig floor

Crew Truck
*3500 dual wheeled
*Diesel/solvent slip tanks
*Pipe racks
*30 lb. External mounted fire extinguisher

Rig Manager Truck
*2500 HD 4x4 Truck
*30 lb.External mounted fire extinguisher

All Diesel engines equipped with positive air shut off
All equipment c/w electrical grounding cables

Service Rig: CBI period 1 Freestanding Double
*Mobile class II double tubing, triple rod 32m mast
*Fast Industries 450 42x10 (main) c/w Kobelt air actuated sandline braking. Air disc auxiliary brake & crownsaver
*Capacity 3200m Maximum static hook load – 200,000 lbs
*22 gallon accumulator c/w BOP ram saver
*Cummins QSL-11
*Allison OFS 4700 6 speed auto transmission
*Unity Rig 100 ton block
*Sandline drum equipped with 4000m of ½ swaged sandline
*2 BG8 hydraulic planetary winches (1 certified man rated)
*Rig is completely equipped with fall protection and rescue equipment including 2 DBI Sala self retracting lifelines positioned at top of mast ladder and on fold out SRL bracket for working in rod basket, tbg board and pump units
*Rig mast and carrier equipped with quick and easy rig up of winter prefabbing
*Ready for night work

Pump & Tank: 2011 SI built International mobile pump unit
*Cummins 15L power through Allison OFS 4700 6-speed automatic transmission
*E300 triplex pump c/w mission change pump
*2” x 21mpa Demco 7 valve pump manifold c/w pop valve and mud gauge
*30 m skid mounted rig tank c/w circulating trough, degasser, auto tank gauge & hopper type bottom with trough for non entry cleaning
*110m of 2” line pipe c/w drip trays and safety cables
 *Circulating system rigged for purging resulting in zero ground contamination

BOP / Picker Truck: 2006 IH 7500
*DT 570 through Allison RDS 4500 auto transmission
*Tandem axle dual wheel
*Hiab 200-4 Crane c/w wireless remote controller
*C/W BOP test stump for 35mpa Unity Rig double gate BOP c/w  dual outlet work spool
*Tong rack to accommodate Oil Country 5893closed mouth tbg tong c/w air backup & lifting cylinder
*Truck is tooled out to carry all well servicing equipment

- 60.3mm, 73mm & 88.9mm tbg handling equipment. (Includes narrow slips, TIW valve & stripper packoff)
- 15mm through 25mm rod handling equipment (Regan BOP & rod wiper)
- BJ rod tongs
- O'Bannon rod overshots to catch from 15mm to  25mm rods and couplings
- Wellhead flanges – National, small national, crown, crown cd, rector, 400 series
- Swabbing equipment and master valves

Mobile Doghouse:2009 36' Norberts Doghouse
*(5) 4 head monitors & auto bump test station c/w computer generated printout
*Full size desk and knowledge box
*Laptop and printer (Loaded with all applicable rules and regulations)
*Microwave & coffee pot
*Incinolet toilet
*Kubota 30 kW generator
*Air conditioner

TrailTech Matting trailer:
*3 6x15 steel reinforced mats for back of rig and stabbing tbg
*1 set of retractable aluminum stairs for rig floor

Crew Truck
*3500 dual wheeled
*Diesel/solvent slip tanks
*Pipe racks
*30 lb. External mounted fire extinguisher

Rig Manager Truck
*2500 HD 4x4 Truck
*30 lb.External mounted fire extinguisher

All Diesel engines equipped with positive air shut off
All equipment c/w electrical grounding cables

Service Rig:CBI period 1 (truck mounted)2014 Peterbilt Model 365 Freestanding Double
*Mobile class II double tubing, triple rod 32m mast
*Fast Industries 450 42x10 (main) c/w Kobelt air actuated sandline braking. Air disc auxiliary brake & crownsaver
*Capacity 3200m Maximum static hook load – 200,000 lbs
*22 gallon accumulator c/w BOP ram saver
*Cummins QSL-11power
*Allison OFS 4500 6-speed auto transmission
*Unity Rig 100 ton block
*Sandline drum equipped with 4000m of ½ swaged sandline
*2 BG8 hydraulic planetary winches
*Rig is completely equipped with fall protection and rescue equipment including 2 DBI Sala self retracting lifelines positioned at top of mast ladder and on fold out SRL bracket for working in rod basket, tbg board and pump units
*Rig mast and carrier equipped with quick and easy rig up of winter prefabbing
*Ready for night work

Pump & Tank: 2014 CBI Peterbilt model 365
*Cummins QSL-11 Power / Allison OFS4500 auto transmission
*SJ 300 5x5 pump c/w mission charge pump & operators cab
*2” x 35mpa welded 7 valve demco manifold c/w pop valve and mud gauge
*30 m3 skid rig tank c/w circulating trough, degasser, auto tank gauge and hopper type bottom with trough for non entry cleaning
*110m of 2” line pipe c/w drip trays & safety cables
*Circulating system rigged for purging resulting in zero ground contamination

BOP / Picker Truck: 2006 IH 7500
*Cummins QSL-11 through Allisson 4500 RDS transmission
*Tandem/tandem
* Hiab 377EP-5 Crane c/w wireless remote controller
*C/W BOP test stump for 21mpa Unity Rig double gate BOP c/w  dual outlet work spool
*Tong rack to accommodate Oil Country 5893closed mouth tbg tong c/w air backup & lifting cylinder
*Truck is tooled out to carry all well servicing equipment

- 60.3mm, 73mm & 88.9mm tbg handling equipment. (Includes narrow slips, TIW valve & stripper packoff)
- 15mm through 25mm rod handling equipment (Regan BOP & rod wiper)
- BJ rod tongs
- O'Bannon rod overshots to catch from 15mm to  25mm rods and couplings
- Wellhead flanges – National, small national, crown, crown cd, rector, 400 series
- Swabbing equipment and master valves

Mobile Doghouse: 2014 x 36' Norberts Doghouse
*Doghouse rigged to outfit Class III Accumulator system
*(5) 4 head monitors & auto bump test station c/w computer generated printout
*Wireless tank gauge readout
*Full size desk and knowledge box
*Laptop and printer (Loaded with all applicable rules and regulations)
*Microwave & coffee pot
*Incinolet toilet
*Kubota 30 kW generator
*Air conditioner

TrailTech Matting trailer:
*3 6x15 steel reinforced mats for back of rig and stabbing tbg
*1 set of retractable aluminum stairs for rig floor

Crew Truck
*3500 dual wheeled
*Diesel/solvent slip tanks
*Pipe racks
*30 lb. External mounted fire extinguisher

Rig Manager Truck
*2500 HD 4x4 Truck
*30 lb.External mounted fire extinguisher

All Diesel engines equipped with positive air shut off
All equipment c/w electrical grounding cables
